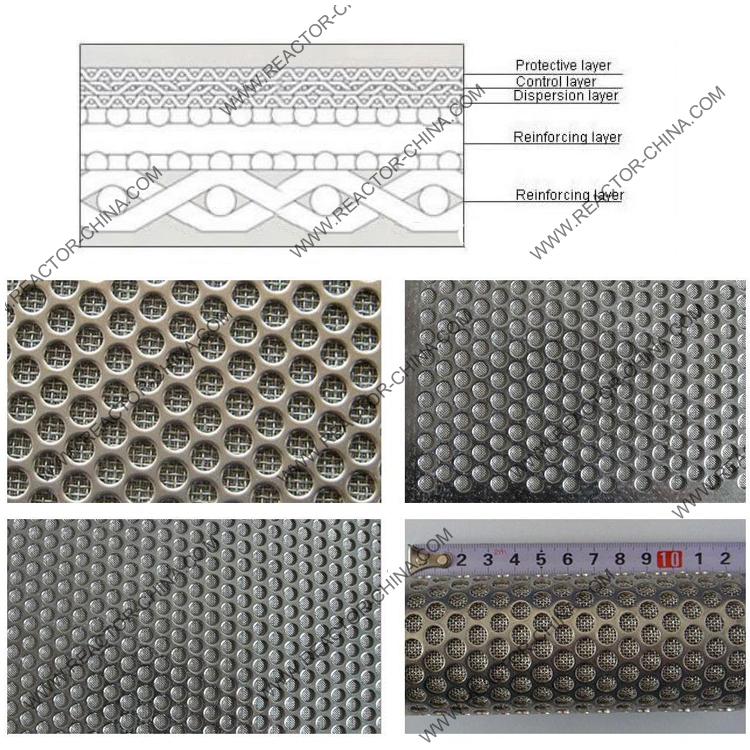

The rolling of the titanium wire by a multi-layer (five layers) titanium, which is made by high temperature vacuum sintering and argonarc or plasma welding. The size and distribution of the pores are adjusted by choosing the wire diamter, mesh size and wwaving method of wire mesh.

Properties:
Defined permeability and particle retention
Good mechanical properties
Corrosion resistance
High temperature resistance
Good back flushing performance
No materials shedding and longer service life

Forms and size:
Disks and tube shape can be made. Fitting can be bonded to the porous parts by welding or directly during sintering process. A wide range of well defined pore size distributions from 2um to 200um.
Material: TA1 or TA2

Applications:
Polyester filtration filter
Oil filtration filter
Pharmaceutical bleaching
Food and beverage filtration filter
Chemical products filtration filter
Water and air filtration filter
