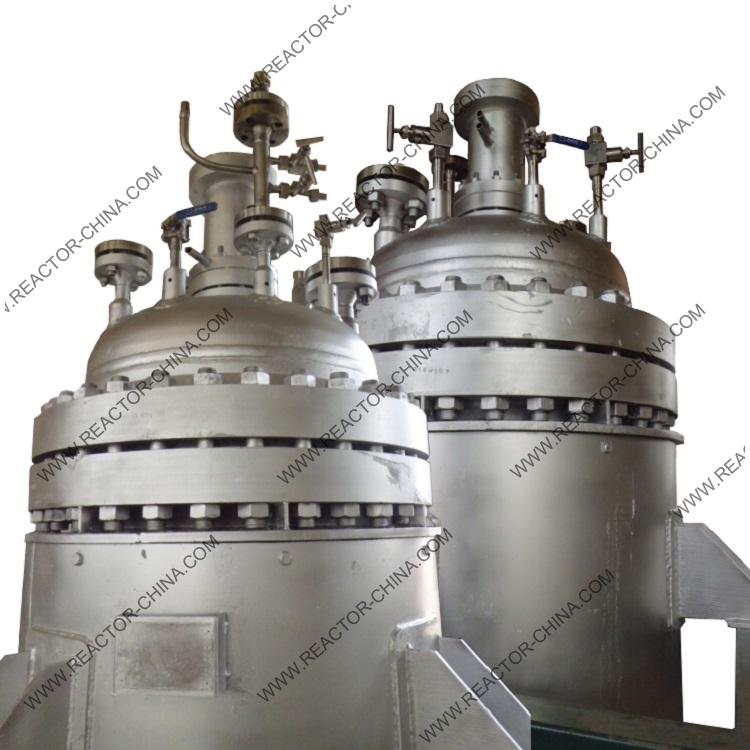

300L hastelloy C-22 Reactor

Product introduction

300L hastelloy C-22 Reactor

Volume: 0.1L~400m3

Working pressure: vacuum ~45MPa

Working temperature: low temperature~ 650℃

Mixing speed: 20-1500r/min

Motor power: 40~100KW

Heating type: electrical heating, water circulation, conduction oil, steam and far infrared ray heating, etc.

Medium discharging type: top discharging and bottom discharging

Mixing shaft: the self-lubricating wear-resisting shaft sleeve is suitable for mixing various kinds of mediums

Mixing type: paddle type, anchor type and screw belt type.

Sealing type: magnetic sealing, mechanical sealing and packing sealing.

Motor: normal DC motor, or common used DC servo motor, or explosion-proof motor according to client’s requirements.

Common used materials of hastelloy reactor include hastelloy C-276 ,C-22 and hastelloy B2, C2000, which are all belong to Nickel - Molybdenum - Chromium - Iron – Tungsten nickel base alloy. It is one of the most corrosion resistant modern metal materials. It mainly anti wet chlorine, various oxidizing chlorides, chlorate solution, sulfuric acid and oxidizing salt, with good corrosion resistance in low temperature and middle temperature hydrochloric acid. It is widely used in chemical, petrochemical, flue gas desulfurization, pulp and paper making and environmental protecting industries.
